Custom designed and fabricated multi-fuel boilers and heat plants.
Custom designed and fabricated multi-fuel boilers and heat plants.
Our boilers are available with a range of fuel options including biomass, solid fuel, gas, liquid fuel and electricity. Respected for our mechanical and project engineering capabilities, we provide comprehensive design, fabrication, installation, and commissioning services to a broad range of industry sectors.
Contact our sales experts
Free customization of boilers of different specifications
Low operating pressure, low operating cost
Up to 15% less energy usage due to low operation pressure and lacking of moving parts
Up to 90% reduced wafer consumption due to use of filtrate in filfer back washe

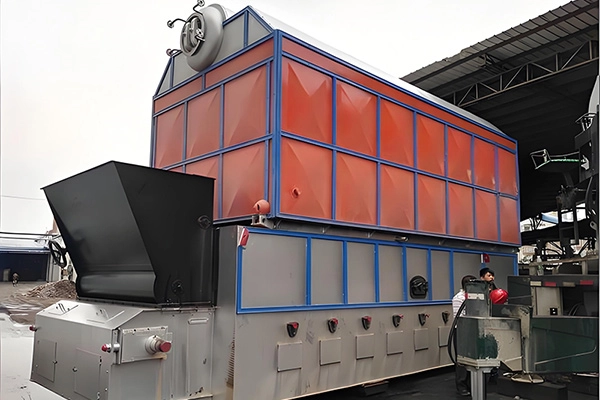

The SZL series coal fired steam boiler is a double-drum, horizontal chain grate boiler designed for efficient combustion of various types of coal. It adopts a modular assembly structure, providing convenient installation, stable operation, and high reliability. The boiler uses a chain grate combustion system to ensure uniform fuel distribution and sufficient combustion. A rear economizer is installed to recover flue gas waste heat, improving thermal efficiency and reducing fuel consumption. Equipped with complete control and monitoring instruments, the SZL series coal fired boiler ensures safe, stable, and efficient operation. It is widely applied in food processing, textile, chemical, pharmaceutical, and industrial manufacturing industries.
| Model | Unit | SZL*-1.25(1.6)-AII | |||||
| Rated evaporation | t/h | 4 | 6 | 8 | 10 | 15 | |
| Feed water temperature | ℃ | 20 / 104 | |||||
| Rated steam pressure | MPa | 1.25 / 1.6 | |||||
| Saturated steam temperature | ℃ | 194 / 204 | |||||
| Thermal efficiency | % | ≥86 | |||||
| Fuel type | — | Bituminous coal / Anthracite coal | |||||
| Combustion type | — | Chain grate firing | |||||
| Control mode | — | Automatic / PLC control (Optional) | |||||
| Applicable fuel size | mm | 6–25 | |||||
*The above data are for reference only. For specific information, please refer to the actual product and product manual. Unless otherwise specified, the right to interpret the data involved in this website belongs to DABONN.
*For other model details, please contact us.
RELATED SERVICES
The dabonn service team is committed to providing optimal availability, performance and quality while optimizing costs. Our filtration solutions are designed to eliminate environmental and social risks in our customers' operations. Our boiler experts ensure safety and quality in everything we do, from research and development and engineering to parts and service.
Filtration upgrades to help achieve your sustainability and production targets
Faster, easier maintenance
Increased filter availability
Improved safety
Minimized downtime
A thermal oil boiler is an industrial heating system that uses heat transfer oil instead of water or steam to deliver high-temperature energy safely and efficiently.
A 1 ton biomass steam boiler costs between $18,000 and $35,000 in 2026, while total installed project cost typically ranges from $35,000 to $75,000 depending on automation and configuration.
For a 4 TPH boiler, the total heat demand comes out to roughly: 4,000 kg × 2,750 kJ ≈ 11,000,000 kJ per hour (11 GJ/h)
